Bridge Saw Machine 4-Axis And 5 Axis For Granite Marble
Functions of 5-Axis Bridge cutting machine included: all kind of stone lines design, arc-edge, French edge, straight edge, bevel edge, abnormity edge, antiskid slot, dry-hang, washbasin processing and so on. “Multifunction, Cover small area, Low energy consumption, Simple operation, Accurate processing, easy and fast transformation between different functions” makes bridge saw machine 4-axis and 5 axis a sharp weapon for stone processing enterprises.Our machines are made with precision and care, ensuring that you get the most accurate cuts every time.
5 axis CNC bridge saw is an automatic stone machining equipment that can complete the processing of pentahedron special-shaped curved surfaces at one time through five-axis linkage control, that is, three linear moving axes and two rotating axes.
Features Of Bridge Saw Machine 4-Axis And 5 Axis For Countertop With Granite, Marble, Quartz
Through the optimization of the process parameters by the numerical control system, the product data files can be stored in modules and called manually. The ideal effect of extremely coordinated movement of each precision component is realized. The process of machine cutting stone slabs can realize automatic and intelligent cutting of stone materials through the pre-setting of the cutting coding program and the automatic operation of the cutting process, so as to achieve the mass production of stone slabs.
1. The integrated design gives the machine more advantages, such as occupying small space, easy installation and debugging, high precision, stable performance, easy operation and so on.2. Bridge, sliding rails and blade holder are built in strong and stiff cast iron for stability, durability and low resonance.
3. Cutting head rotate 90°, tilting 45° suitable for chamfering cutting.
4. 0° to 360° cutting head rotation and 0° to 90° cutting head tilting.
5. The worktable installs independently, the hydraulic console panel level 0, 45°, 90° turns. Worktable tilting vertical turn 85°, easier and safe loading raw materials.
6. The CNC bridge saw is made up of main motor, longitudinal slicing part, worktable assembly, electric control system, hydraulic system and so on.
7. The CNC bridge saw is equipped with infrared tool setting gauge, to accurately adjust the cutting size.
8. This is all-in-one machine with good stability and small floor space.
Bridge Saw Machine 4-Axis And 5 Axis Advantages：

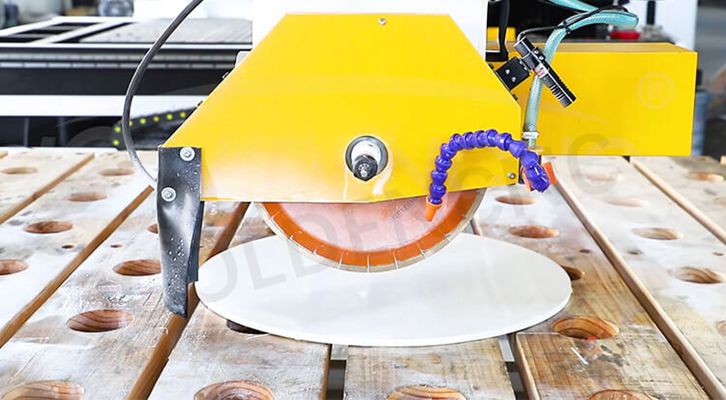

1. The bridge stone cutting machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape

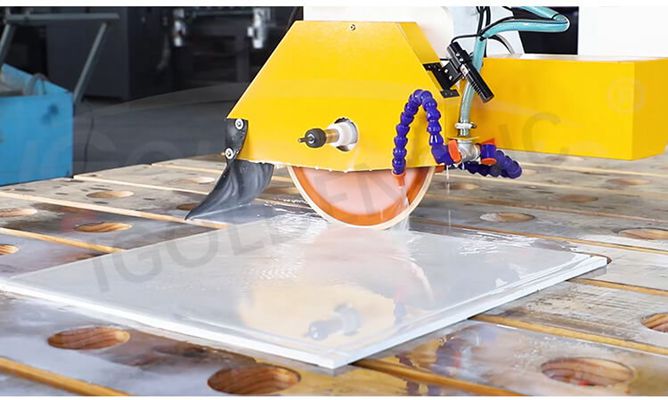

2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting
3. The platform is turned over at 85 degrees to facilitate loading and unloading.
4. The operation is simple and the control system can input data.
5. Equipped with grinding wheel device, it can polish the table face and cutting surface
